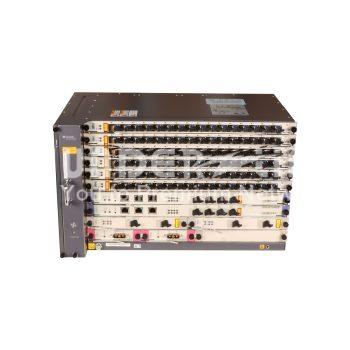

10G Master Board HW Ma5683T Gpon OLT
₨120,000.00
10G Master Board HW Ma5683T Gpon OLT
Description
|
dex
|
MA5680T(ETSI)
|
MA5680T(IEC)
|
MA5683T
|
|
Compatible cabinet
|
Indoor cabinet：N63E-22、N66E-18
|
Indoor cabinet：N66E-22
|
Indoor cabinet：N66E-18
|
|
outdoor cabinet：F01T500
|
outdoor cabinet
|
outdoor cabinet：F01S300、F01T500、F01T300
|
|
|
Service Card
|
Main control board: 2 slots
|
Main control board: 2 slots
|
Main control board: 2 slots
|
|
Service board: 16 slots
|
Service board: 16 slots
|
Service board: 6 slots
|
|
|
Universal interface board: 1 slot
|
Universal interface board: 1 slot
|
Universal interface board: 1 slot
|
|
|
Uplink interface board: 2 slots
|
Uplink interface board: 2 slots
|
Uplink interface board: 2 slots
|
|
|
Power interface board: 2 slots
|
Power interface board: 2 slots
|
Power interface board: 2 slots
|
|
|
Supportable main control board and switching capacity
|
SCUN/SCUK：480Gbit/s（Active/standby mode）、960Gbit/s（Load sharing mode)
|
||
|
SCUH/SCUV：960Gbit/s（Active/standby mode）、1920Gbit/s（Load sharing mode)
|
|||
|
System Layer 2 packet forwarding rate
|
SCUN/SCUK：726Mpps（Active/standby mode）、1452Mpps（Load sharing mode）
|
||
|
SCUH/SCUV：1428Mpps（Active/standby mode）、2856Mpps（Load sharing mode)
|
|||
|
Exchange forwarding delay
|
Has a lower forwarding delay. The 100Mbit/s Ethernet port sends 64Byte Ethernet packets with a delay of no more than 20μs.
|
||
|
Full load error rate
|
When the port is transmitting at full load, the bit error rate (bit error rate) is <10 e-7
|
||
