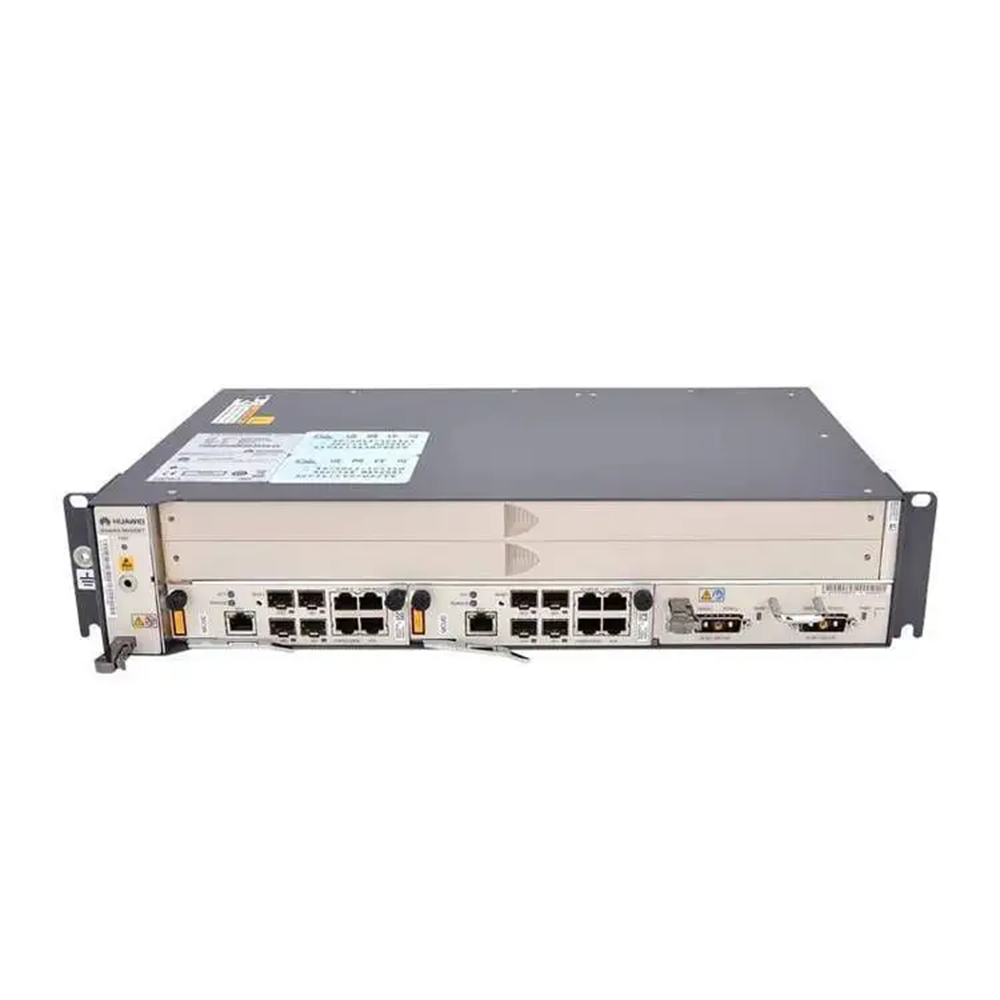

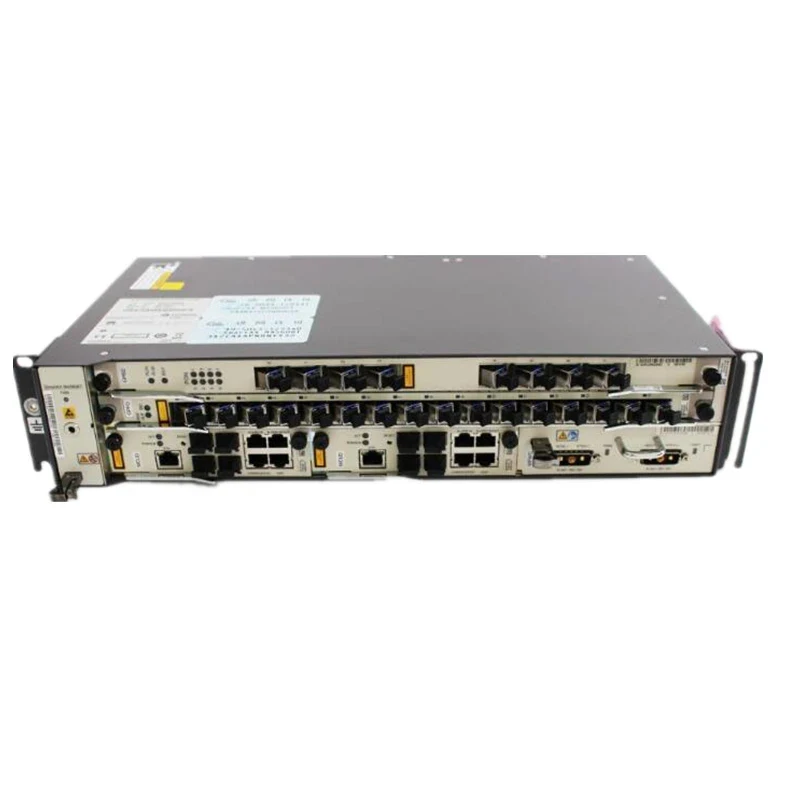

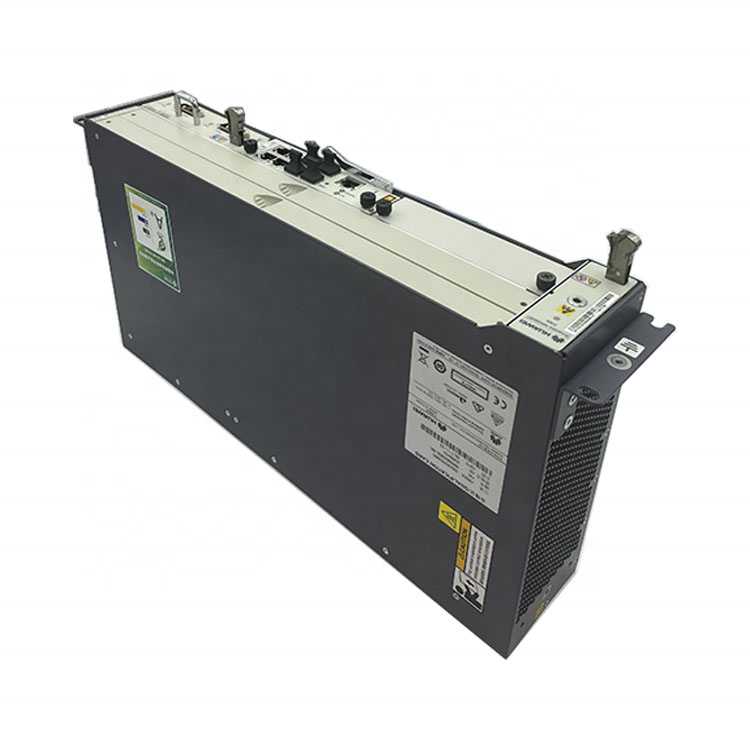

Huawei MA5608T OLT
New Olt Ma5608T Epon Gpon Xpon Gepon 16 Port 5608T
| Model | 5608T |
|---|---|
| Type | OLT |
| Brand | OEM |
| Origin | China |
| Application | FTTx |
| Warranty | 1 Year |
| Network | LAN / 5G |
| Ports | EPON / GPON / 10G |
| Power Card
Power card |
MPWC(DC power)
MPWD(AC power ) |
| Connector | UPC |
| Voltage | 48V / -60V |
| Size | 442 × 268.7 × 263.9 mm |
| Switch Cap. | 7 Tbit/s |
| MAC | 262K |
| ARP | 64K |
| Temp | -40°C to 65°C |
| L2 Rate | 190–380 Mpps |
| Backplane | 720 Gbps |
| Unit | Single |
Huawei MA5608T OLT
Description
New Olt Ma5608T Epon Gpon Xpon Gepon 16 Port 5608T

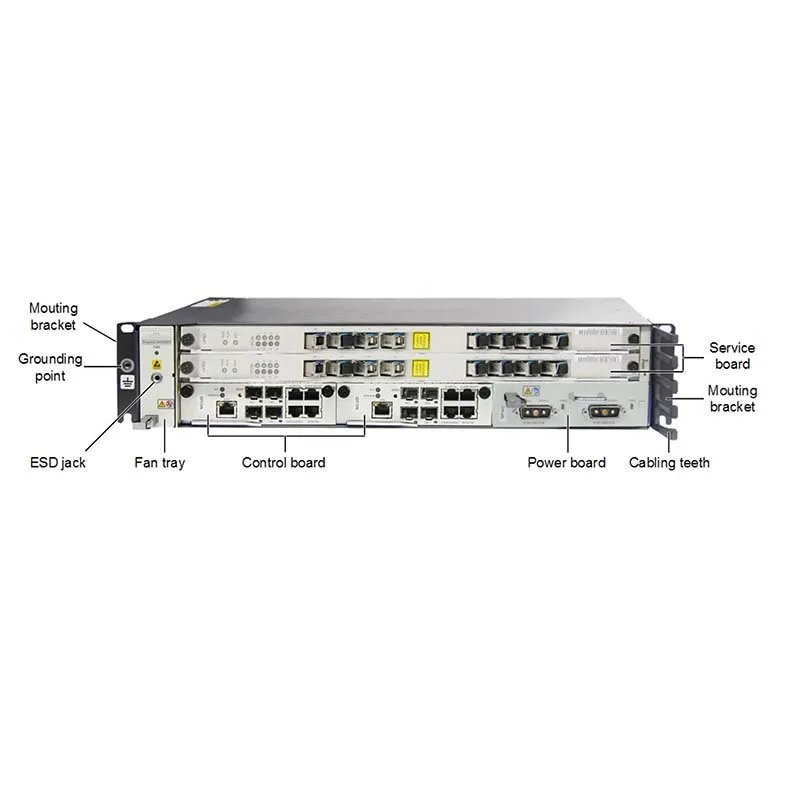

1.Frame OLT-MA5608T,19inch,2U,supporting 2 slots for PON service boards, 442(W)*233.5(D)*88(H)mm 2.Control board MCUD & MCUD1 3.Service board (8 & 16 ports) GPBD & GPFD (C+ & C++) 4.Power board MPWC & MPWD
Maximum Number of MAC Addresses262,143
Maximum Number of ARP/Routing Entries64K
Ambient Temperature-40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest
temperature measured at the air intake ventWorking Voltage Range
-38.4V DC to -72V DCDC power supply:
-38.4V to -72VAC power supply:
100V to 240VLayer 2 Features
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82Layer 3 Features
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRFMPLS & PWE3
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switchingIPv6
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relayMulticast
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicastQoS
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service
Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board
fault detection and rectification, and service overload control
Maximum Number of ARP/Routing Entries64K
Ambient Temperature-40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest
temperature measured at the air intake ventWorking Voltage Range
-38.4V DC to -72V DCDC power supply:
-38.4V to -72VAC power supply:
100V to 240VLayer 2 Features
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82Layer 3 Features
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRFMPLS & PWE3
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switchingIPv6
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relayMulticast
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicastQoS
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service
Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board
fault detection and rectification, and service overload control
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
