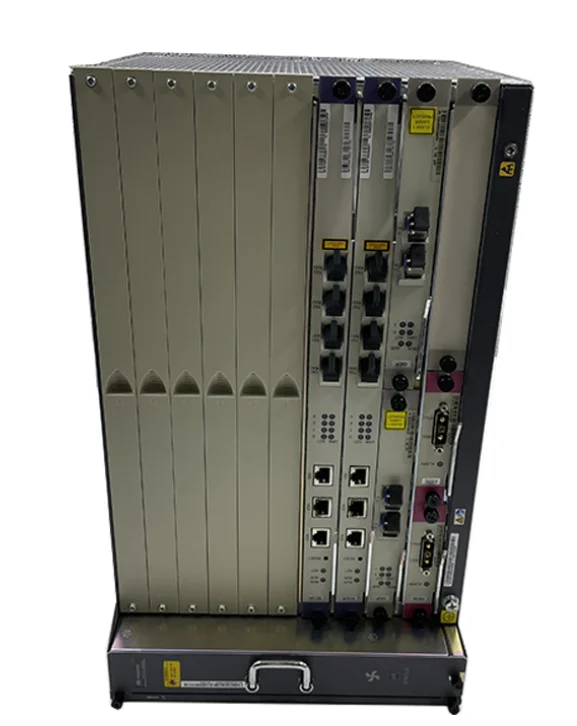

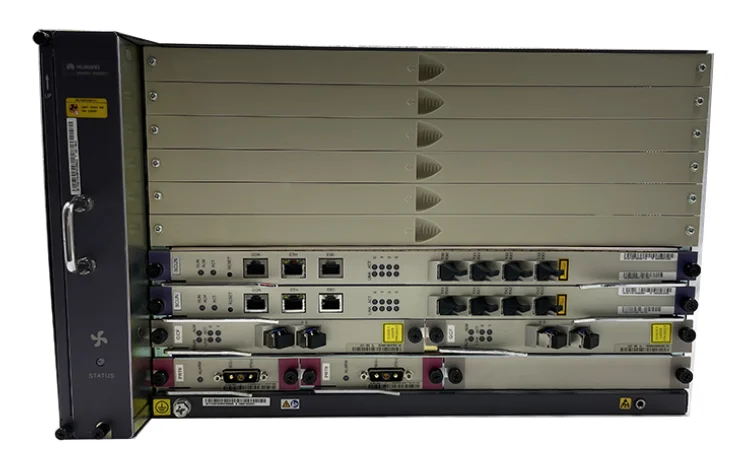

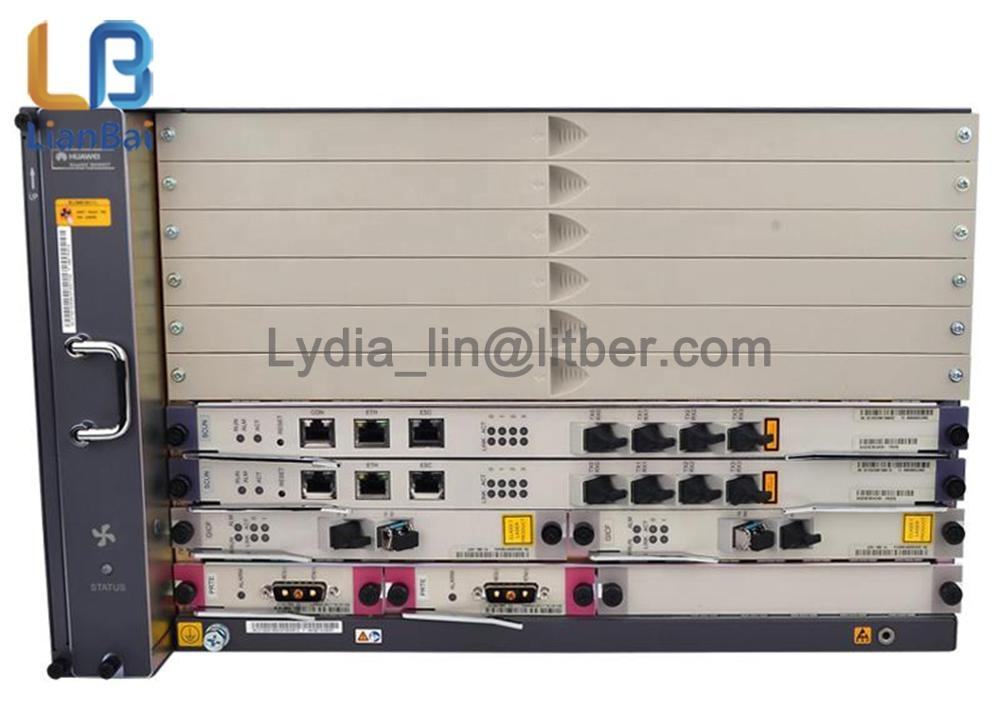

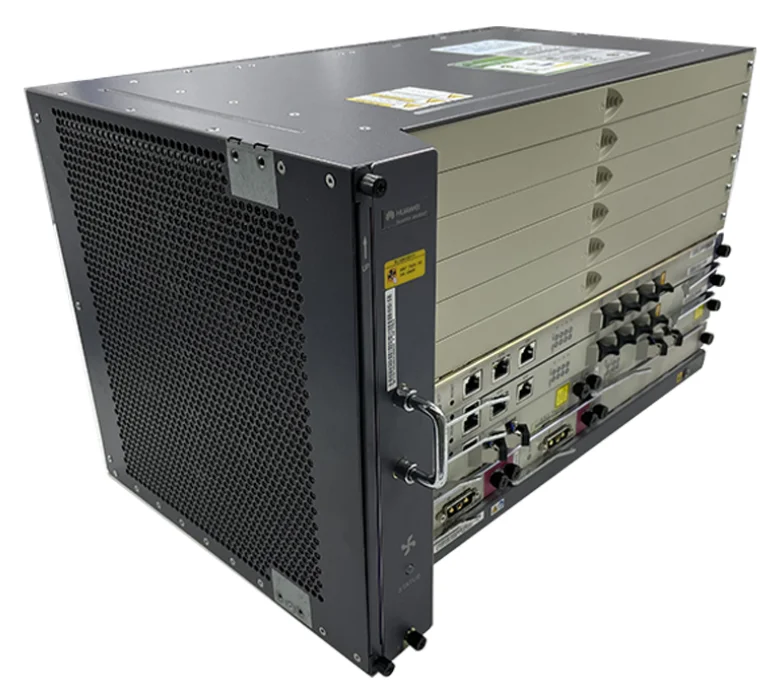

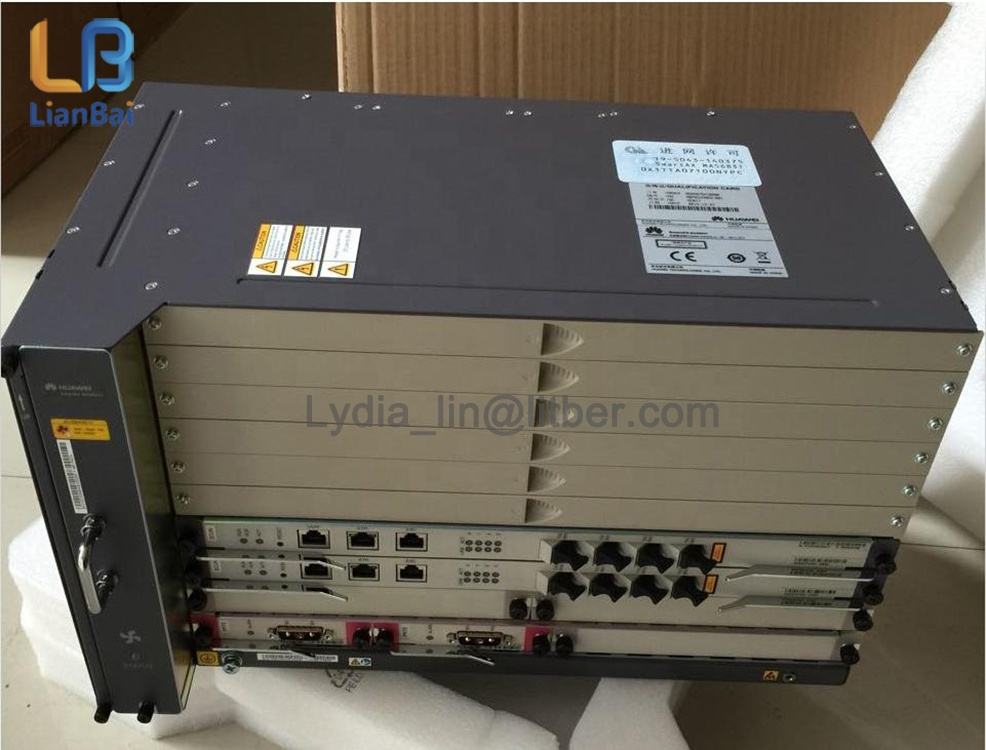

Huawei MA5683T OLT
HW Gpon Olt Ma5683t HUAWEIs Smartax Ma5683t Olt With 10g 96 Port Olt
| Model Number | HW MA5683T |
|---|---|
| Type | OLT |
| Brand Name | HW |
| Place of Origin | Guangdong, China |
| Use | FTTH FTTB FTTX Network |
| Warranty Time | 1 year |
| Network | None |
| Port | 16 |
| Power Source | AC 100-240V |
| Connector Type | UPC |
| Model | MA5683T OLT |
| Application | FTTH FTTB FTTX Network |

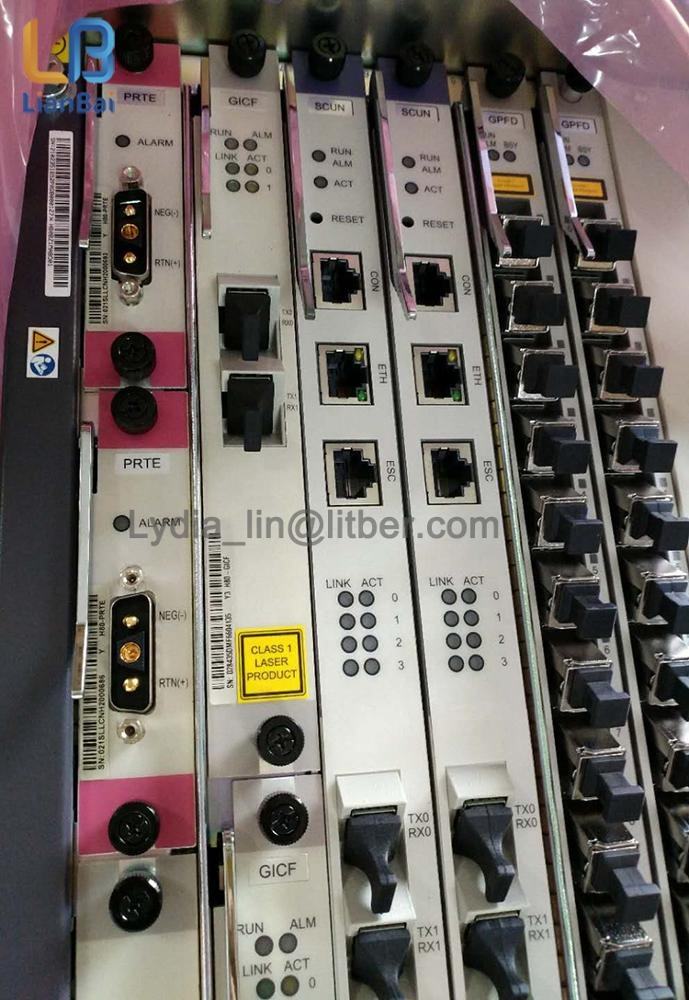

| Control Board | SCUN |
| Power Card | PRTE |
| 1G Uplink Card | GICF |
| 10G Uplink Card | X2CS |
| Xpon | GPON EPON |
| SFP Module | B+/C+/C++ |
| Packaging Size | 442 × 283.2 × 263.9 mm |
| PON Port Board | GPBD, GPHD, GPFD, EPSD, EPBD, EPFD |
| Selling Units | Single item |
| Single Package Size | 442 × 283 × 263.7 cm |
| Single Gross Weight | 60.000 kg |
Huawei MA5683T OLT
Description
|
item
|
value
|
|
Model Number
|
HW MA5683T
|
|
Type
|
OLT
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
HW
|
|
Use
|
FTTH FTTB FTTX Network
|
|
Warranty Time
|
1 year
|
|
Certification
|
None
|
|
Network
|
None
|
|
Model:
|
HW MA5683T OLT
|
|
Application
|
FTTH FTTB FTTX Network
|
|
Control Board
|
2×SCUN
|
|
Power card
|
2×PRTE
|
|
1g Uplink Card
|
GICF
|
|
10G Upllink Card
|
X2CS
|
|
Xpon
|
GPON EPON
|
|
SFP Module
|
B+/C+/C++
|
|
Packaging Size:
|
442*283.2*263.9mm
|
|
PON Port Board:
|
GPBD,GPHD,GPFD,EPSD,EPBD,EPFD
|
Product Spec
System Performance
Backplane capacity: 3.2 Tbit/s; switching capacity: 960 Gbit/s; MAC address capacity: 512 K.
Layer 2/Layer 3 line rate forwarding.
Static route/RIP/OSPF/MPLS.
BITS/E1/STM-1/Ethernet clock synchronization mode and IEEE 1588v2 clock synchronization mode.
SmartAX MA5683T is the global first all-in-one access platform which can provide DSL and optical integrated access. It can provide
high density ADSL2+, VDSL2, POTS, ISDN, PON and Ethernet fiber P2P access, triple-play service, and TDM/ATM/Ethernet leased line
services for business customers.
The MA5683T can also offer mobile backhaul with high reliability and high precision clock, and high density GE/10GE interfaces for
cascading remote access equipments. MA5683T helps to simplify network architecture, to enable seamless migration in FTTx network
and lower TCO essentially.
Layer 2/Layer 3 line rate forwarding.
Static route/RIP/OSPF/MPLS.
BITS/E1/STM-1/Ethernet clock synchronization mode and IEEE 1588v2 clock synchronization mode.
SmartAX MA5683T is the global first all-in-one access platform which can provide DSL and optical integrated access. It can provide
high density ADSL2+, VDSL2, POTS, ISDN, PON and Ethernet fiber P2P access, triple-play service, and TDM/ATM/Ethernet leased line
services for business customers.
The MA5683T can also offer mobile backhaul with high reliability and high precision clock, and high density GE/10GE interfaces for
cascading remote access equipments. MA5683T helps to simplify network architecture, to enable seamless migration in FTTx network
and lower TCO essentially.
Sevice board
H805GPBD Board
H805GPBD is a 8-port GPON OLT Interface Board. It works with the optical network terminal (ONT) to provide GPON access service.
The H805GPBD board supports the following functions:
• Eight GPON SFP ports;
• A maximum of 1:128 split ratio;
• Class B+ and Class C+ optical modules;
• Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module;
• ONU-based shaping;
• Optical performance monitor (OPM);
• Automatic power shutdown in case of a high temperature.
control board
H801SCUN Board
The H801SCUN board is a Super Control Unit Board. It is the core of the system control and service switching and aggregation. The
H801SCUN board can also function as the management and control core of the integrated network management system (NMS). It
communicates with service boards about the key management and control information through the master/slave serial port and inband
GE/10GE channel. In this manner, the H801SCUN board configures, manages, and controls the device, and also implements the simple
route protocol functions.
The H801SCUN board supports the following functions:
• System control and management unit;
• Local and remote maintenance;
• Active/standby switchover;
• Load balancing;
• GE or 10GE channel to the service board;
• Environmental monitoring parameters;
• Four SFP GE ports for upstream transmission or cascading.
The H801SCUN board is a Super Control Unit Board. It is the core of the system control and service switching and aggregation. The
H801SCUN board can also function as the management and control core of the integrated network management system (NMS). It
communicates with service boards about the key management and control information through the master/slave serial port and inband
GE/10GE channel. In this manner, the H801SCUN board configures, manages, and controls the device, and also implements the simple
route protocol functions.
The H801SCUN board supports the following functions:
• System control and management unit;
• Local and remote maintenance;
• Active/standby switchover;
• Load balancing;
• GE or 10GE channel to the service board;
• Environmental monitoring parameters;
• Four SFP GE ports for upstream transmission or cascading.
