Huawei MA5800-X7 OLT
HUAWEIs Olt Ma5800 X7 Smartax Ma5800-x7 With GPHF C++ Card XGPON Optical Line Terminal Gpon Olt
| Model Number | HW MA5800-X7 |
|---|---|
| Type | OLT |
| Brand Name | HW |
| Place of Origin | Guangdong, China |
| Use | FTTH FTTX |
| Warranty Time | 1 year |
| Network | Wireless Lan, 5G |
| Port | 16 PORT |
| Power Source | AC 220 V, AC 100-240V |
| Connector Type | UPC |
| Solution | FTTH FTTX |

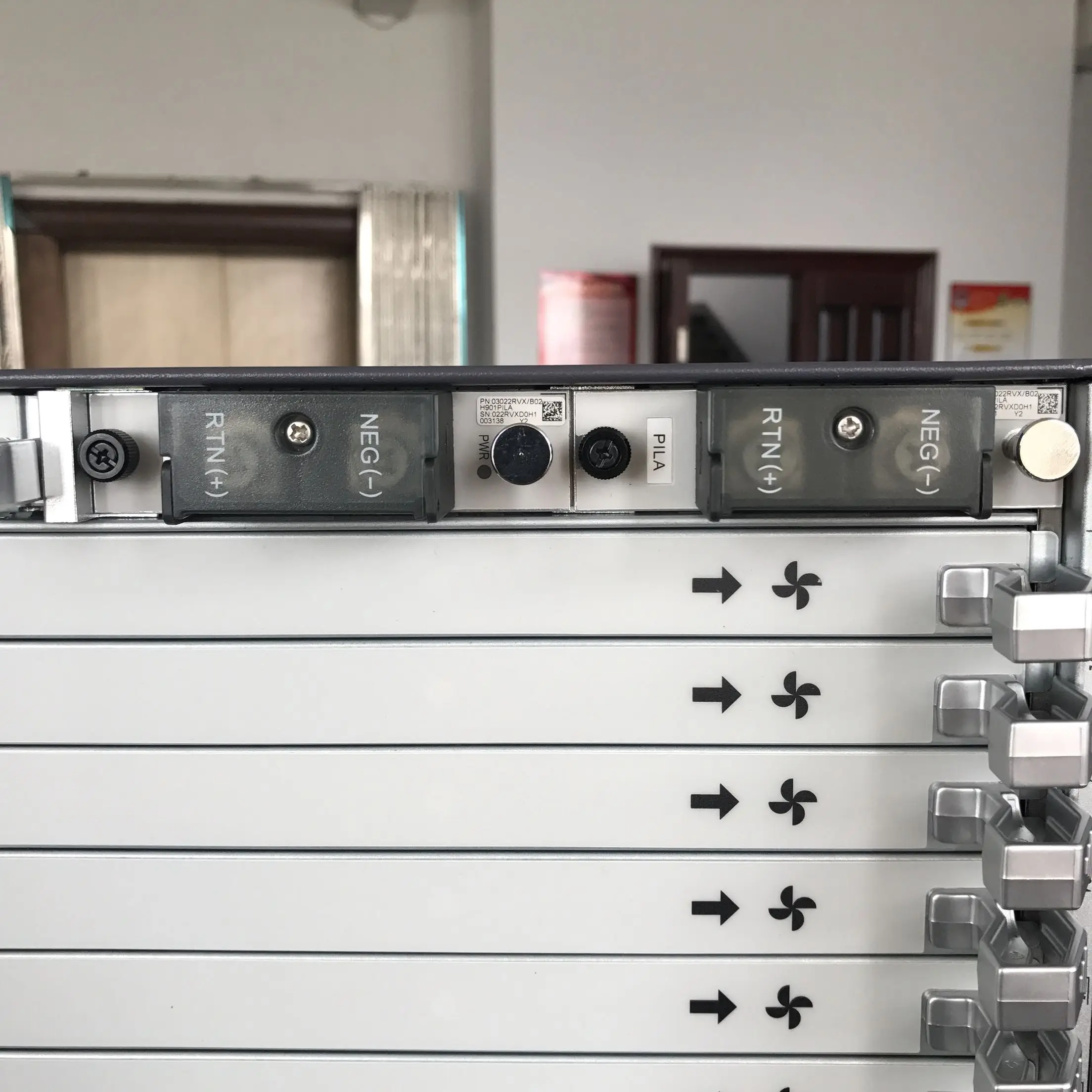

| Power Board | H901 2× PILA |
| Control Board | 2x MPLB |
| Uplink Board | MPLA-2xMPLB |
| Service Board | H901 GP HFC++ |
| 16 Port GPON Card | GPHF |

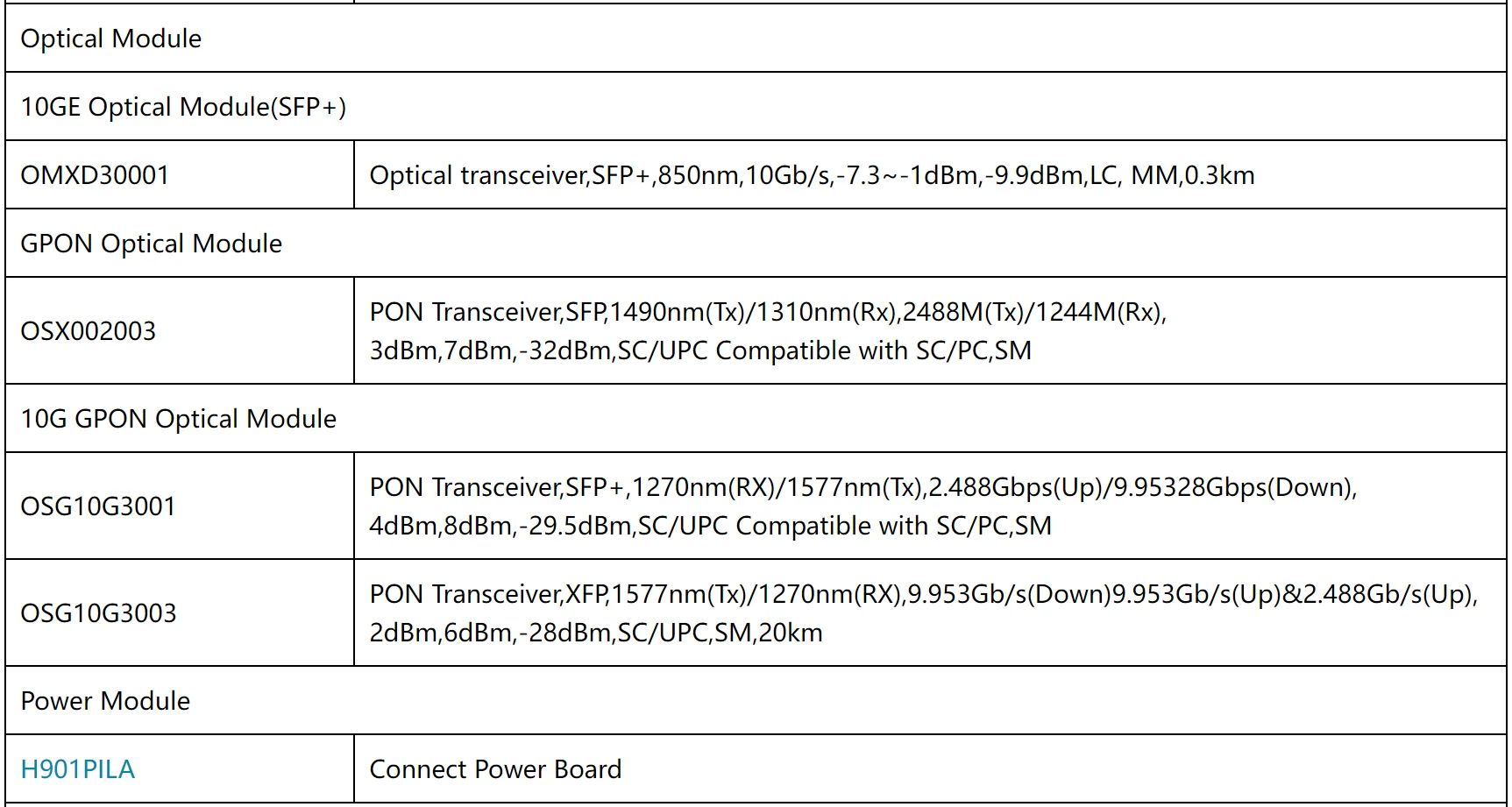

| SFP Module | B+/C+/C++ |
| Packaging Size | 493 mm x 287 mm x 486 mm |
| Packaging and Delivery | Selling Units: Single item Single package size: 55X28X28 cm Single gross weight: 60.000 kg |
Huawei MA5800-X7 OLT
Description

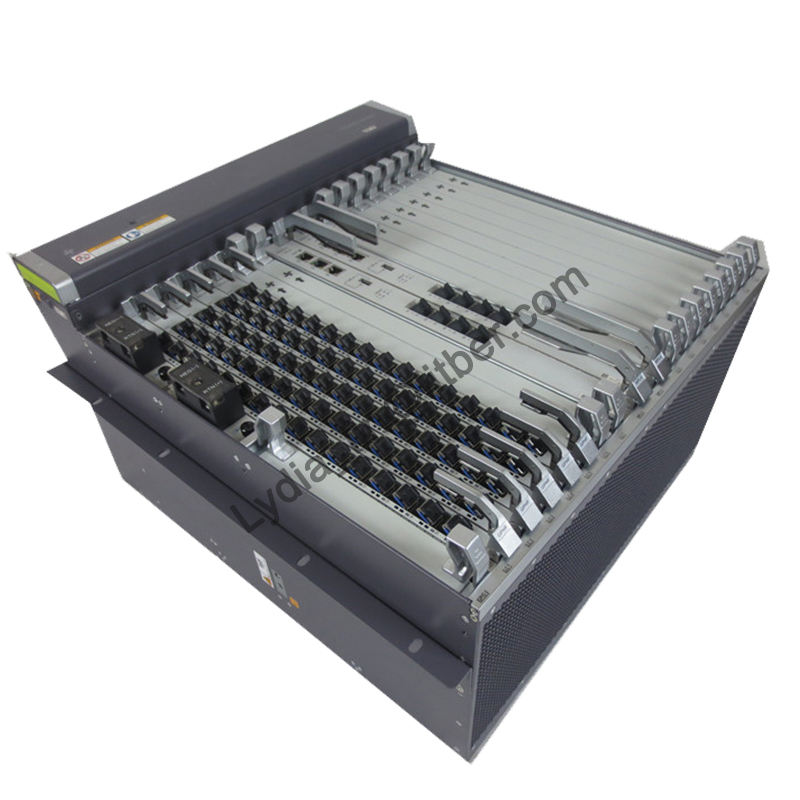

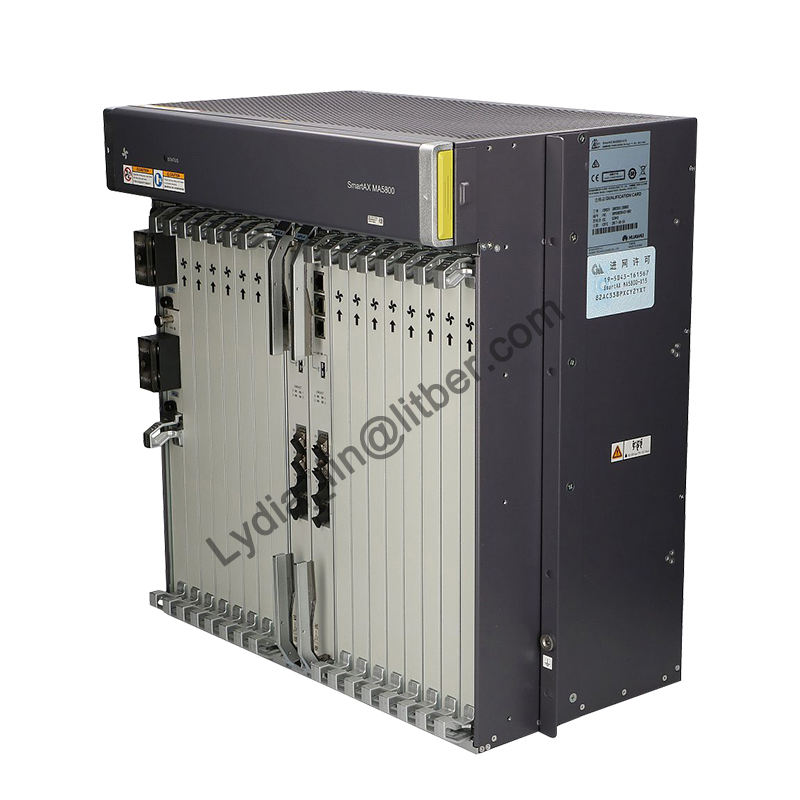

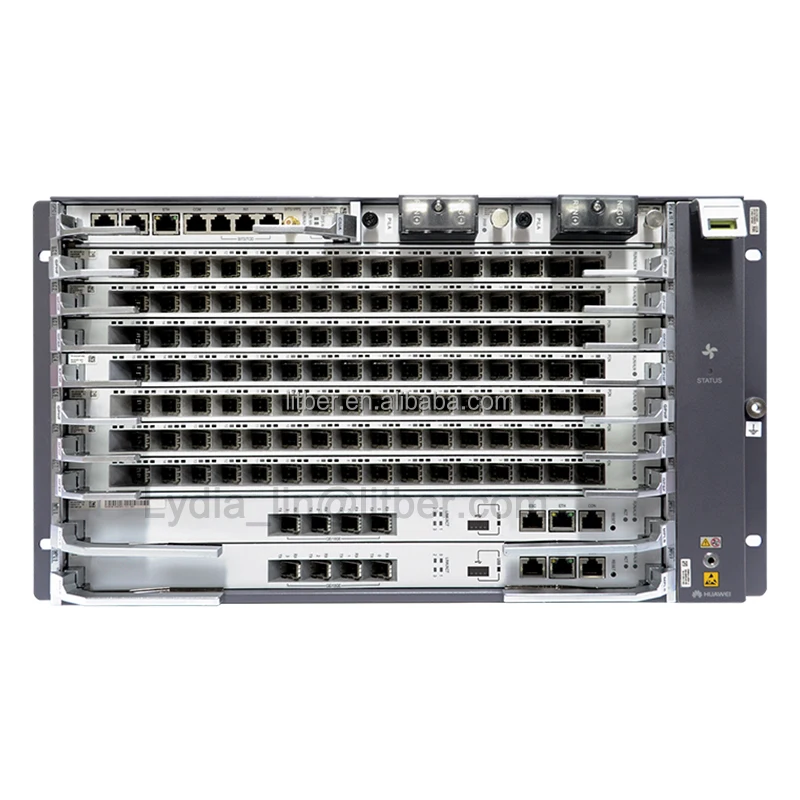

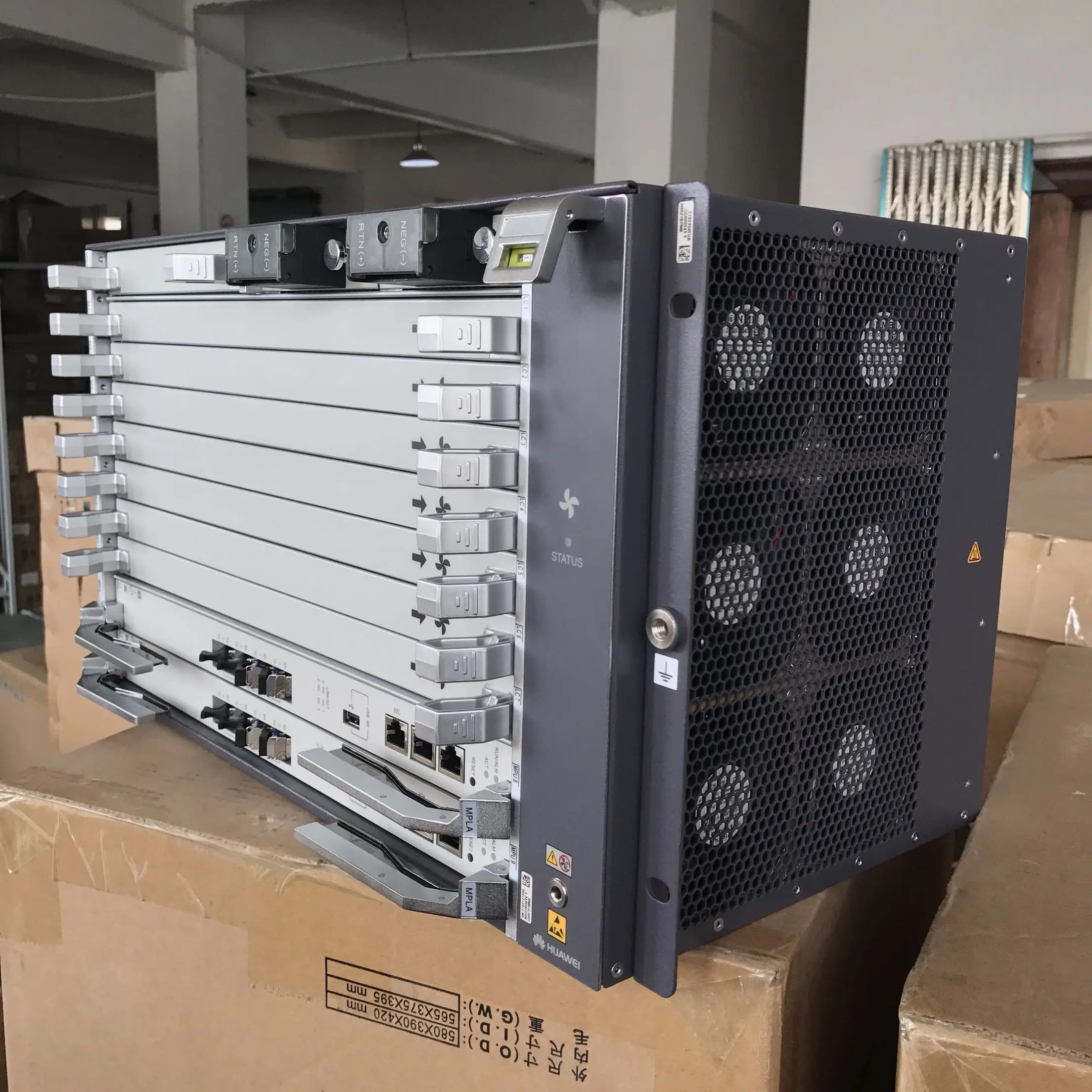

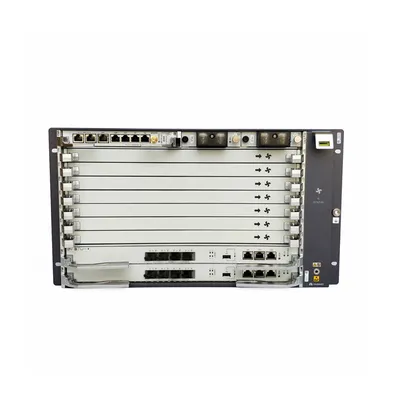

HW SmartAX MA5800 X7 OLT Product Overview

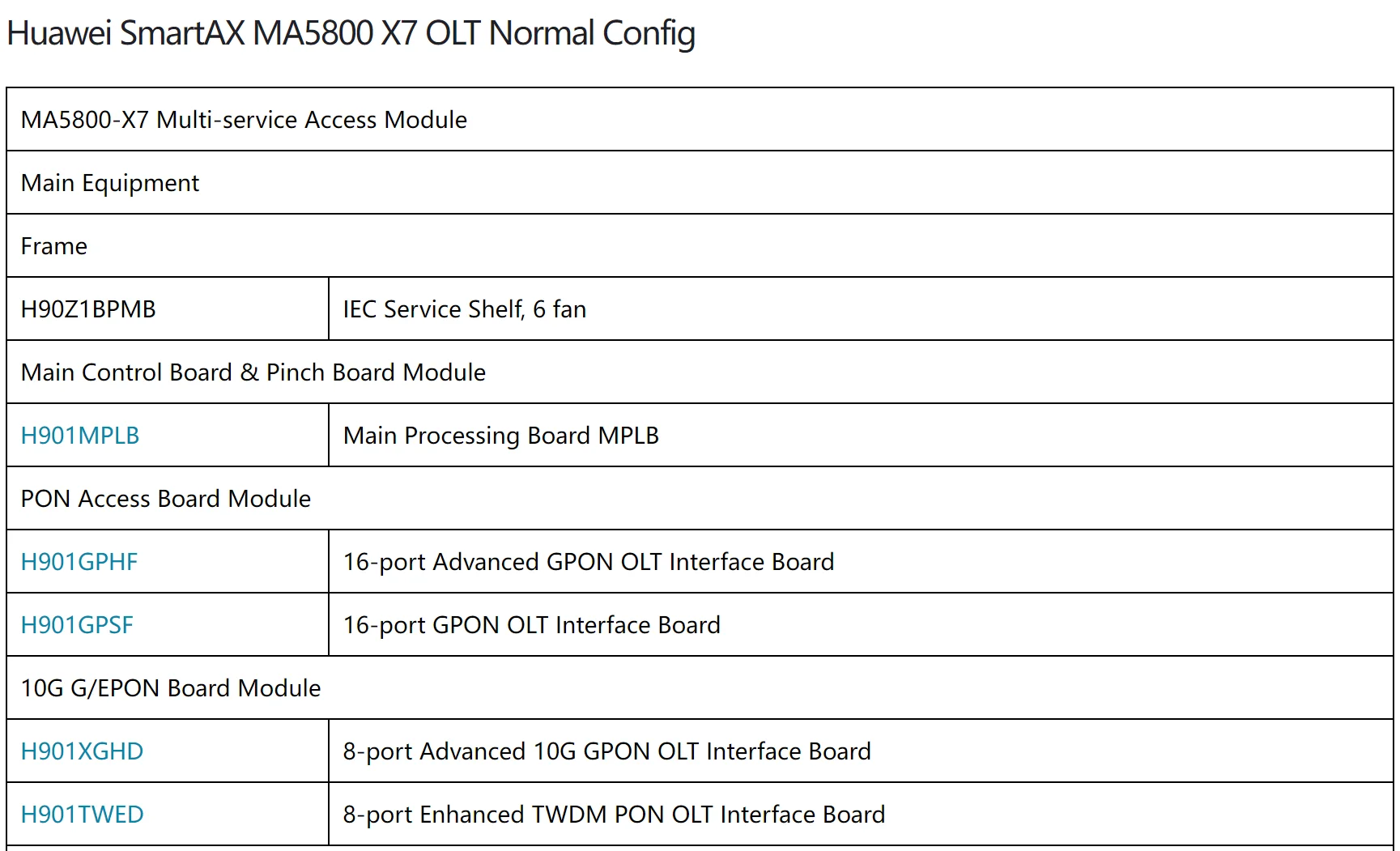

hw SmartAX MA5800 X7 OLT is 19inch, with 6U height 7 service slots, 200G throughput per slot, support GPON, 10G PON, 40G/100G PON ready; H901BPMB subrack equipped with 2xH901MPLA, 2xH901PILA. It adopts a distributed forwarding architecture with a single-slot throughput of 200G and supports large-capacity 40GPON non-blocking access.
For any detailed information, please send us an inquiry, thank you.

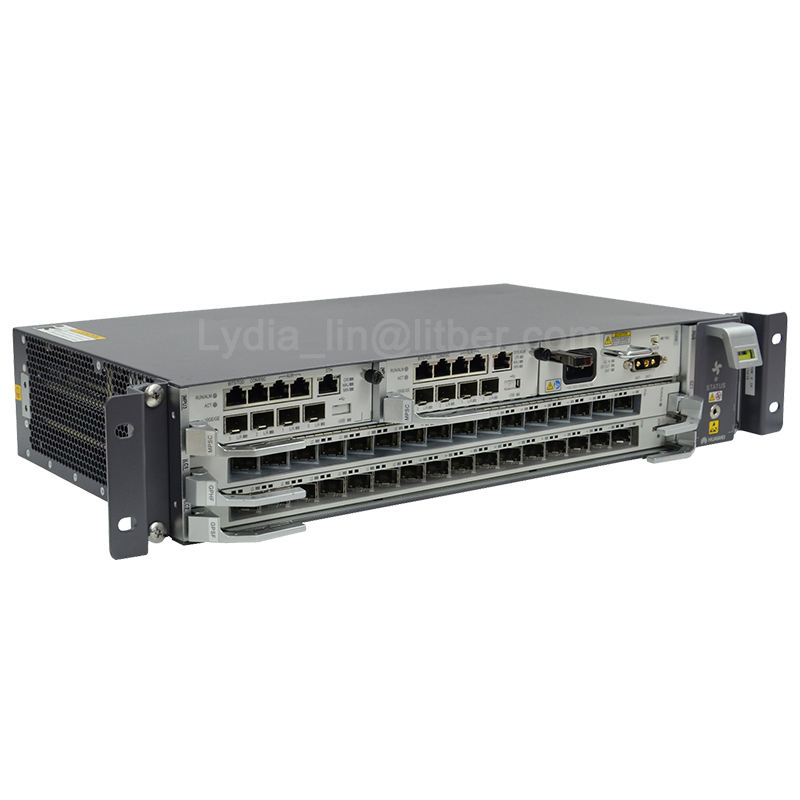

HW SmartAX ma5800-x2 ma5800-x7 ma5800-x15 ma5800-x17 ma5608t
For any detailed information, please send us an inquiry, thank you.
Specification
|
Item
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Dimensions (W x D x H)
|
493 mm x 287 mm x 486 mm
|
442 mm x 287 mm x 486 mm
|
442 mm x 268.7 mm x 263.9 mm
|
442 mm x 268.7 mm x 88.1 mm
|
|
Switching Capacity of the System
|
7 Tbit/s
|
480 Gbit/s
|
||
|
Maximum Number of Ports in a Subrack
|
272 x GPON/EPON
|
240 x GPON/EPON
|
112 x GPON/EPON
|
112 x GPON/EPON
|
|
816 x GE/FE
|
720 x GE/FE
|
336 x GE/FE
|
96 x GE/FE
|
|
|
136 x 10G GPON/10G EPON
|
120 x 10G GPON/10G EPON
|
56 x 10G GPON/10G EPON
|
16 x 10G GPON/10G EPON
|
|
|
136 x 10G GE
|
120 x 10G GE
|
56 x 10G GE
|
16 x 10G GE
|
