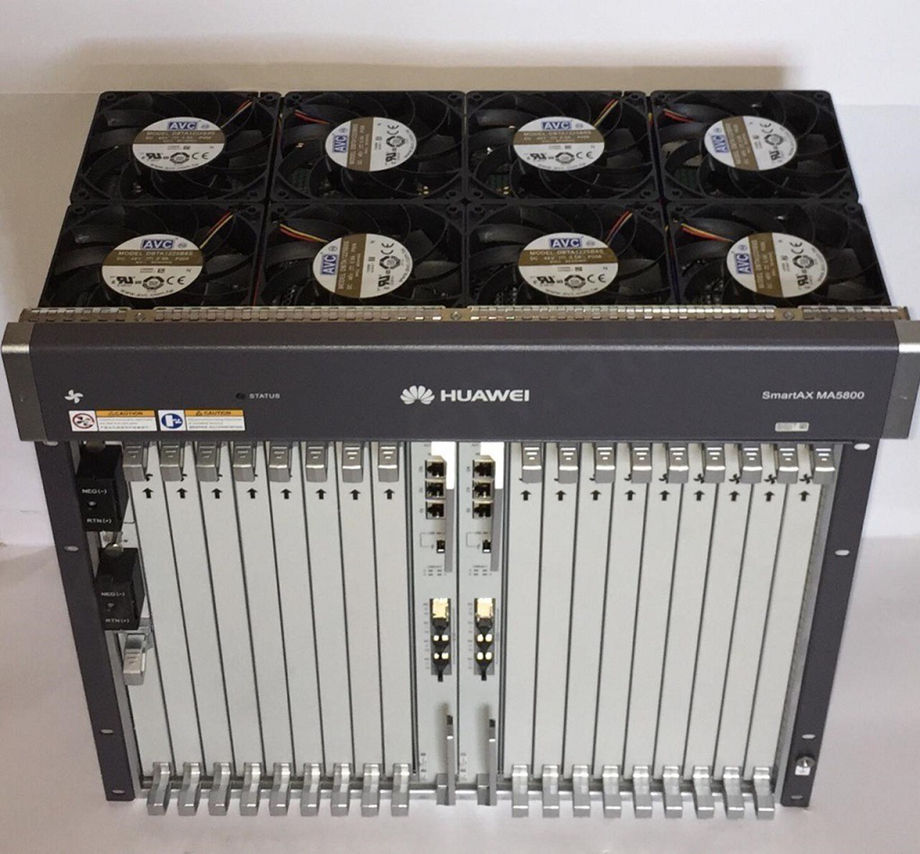

Huawei MA5800-X17 OLT
Original Ma5800 X17 Olt Card Gphf 16 Ports Sfp C+ C++ Board Gpon Olt Ftth Xpon Ma5800-x17 Olt Gphf
| Model Number | HW MA5800-X17 |
|---|---|
| Type | OLT |
| Brand Name | HW |
| Place of Origin | Guangdong, China |
| Use | FTTH |
| Warranty Time | 1 Year |
| Network | Wi-Fi |
| Ports | 16 / 32 |
| Power Source | AC 100–240V |
| Connector Type | LC |
| Solution | FTTH / FTTX |
| Control Board | MPLA |
| DC Power Card | PILA |
| 16 Port GPN Card | GPHF |
| SFP Module | B+ / C+ / C++ |
| Packaging Size | 493 mm × 287 mm × 486 mm |
| Selling Units | Single Item |
| Single Package Size | 49 × 28 × 48 cm |
| Single Gross Weight | 457.000 kg |
Huawei MA5800-X17 OLT
Description
HW SmartAX MA5800 X 15 x17 OLT is 21inch with 11U height 17 service slots, 200G throughput per slot, supporting GPON, 10G PON, 40G/100G PON ready; H901BPLB subrack with 2xH901MPLA, 2xH901PILA
HW SmartAX MA5800 X17 Product Overview
HW SmartAX MA5800 X17 OLT is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization common platform, and smooth evolution of 50G PON.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X15 and MA5800-X2and they support various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
HW SmartAX MA5800 X17 Product Overview
HW SmartAX MA5800 X17 OLT is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization common platform, and smooth evolution of 50G PON.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X15 and MA5800-X2and they support various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
HW SmartAX ma5800-x2 ma5800-x7 ma5800-x15 ma5800-x17 ma5608t
For any detailed information, please send us an inquiry, thank you.
Specification
|
Item
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Dimensions (W x D x H)
|
493 mm x 287 mm x 486 mm
|
442 mm x 287 mm x 486 mm
|
442 mm x 268.7 mm x 263.9 mm
|
442 mm x 268.7 mm x 88.1 mm
|
|
Switching Capacity of the System
|
7 Tbit/s
|
480 Gbit/s
|
||
|
Maximum Number of Ports in a Subrack
|
272 x GPON/EPON
|
240 x GPON/EPON
|
112 x GPON/EPON
|
112 x GPON/EPON
|
|
816 x GE/FE
|
720 x GE/FE
|
336 x GE/FE
|
96 x GE/FE
|
|
|
136 x 10G GPON/10G EPON
|
120 x 10G GPON/10G EPON
|
56 x 10G GPON/10G EPON
|
16 x 10G GPON/10G EPON
|
|
|
136 x 10G GE
|
120 x 10G GE
|
56 x 10G GE
|
16 x 10G GE
|
